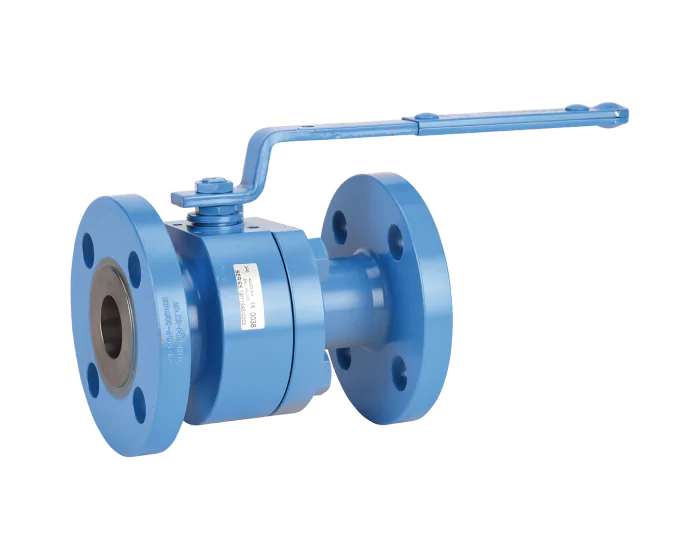

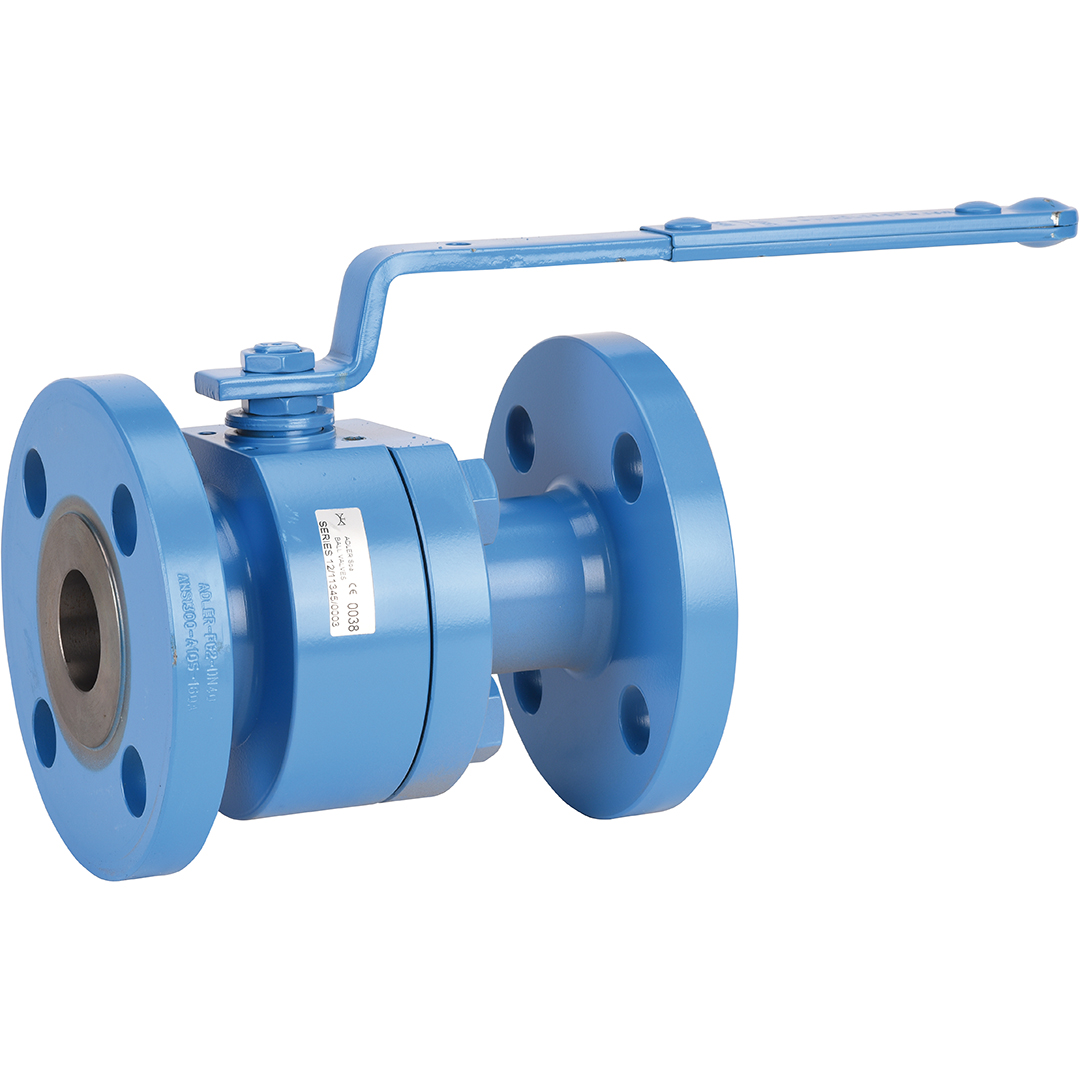

Carbon steel ball valve 758 2 piece body RF ANSI300 1/2''
€277.70
(excl. btw)
The Sferaco 758 series ball valve, 2-piece body model with PN50 Class 300 flanges, steel, ISO 10497 fire safety, adler FE2 type, motorizable, packing gland, double tightness for industries and compressed air.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
SIL
SIL 1
Type of paint
Epoxy
Paint coating thickness (µm)
35.00
EN face-to-face standard
EN 558 Series 4
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 4. ASME B16.10
Brand
ADLER
Tightness test standard
ANSI B16.34
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 304
Square, star (mm)
MEP Ø10x6
ATEX compatible
Yes
Torque (Nm)
7
DN
DN15 - 1/2''
Face to Face (mm)
140.0
Fluid
Hydrocarbons. gas
Body material
Carbon steel ASTM A105 N
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
50
Connections
Flanged #300 PN50
Seats
PTFE
Ball material
Stainless steel ASTM A479 304L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Blue
Handle material
Carbon steel
Handle type
Blue lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6837
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN15 - 1/2''
758015
S1007034
€277.70
(excl. btw)
add to cart
6838
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN20 - 3/4''
758020
S1007035
€319.77
(excl. btw)
add to cart
6839
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN25 - 1''
758025
S1007036
€370.26
(excl. btw)
add to cart
6840
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN40 - 1''1/2
758040
S1007037
€642.36
(excl. btw)
add to cart
6841
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN50 - 2''
758050
S1007038
€659.19
(excl. btw)
add to cart
6842
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN65 - 2''1/2
758065
S1007039
€1,091.16
(excl. btw)
add to cart
6843
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN80 - 3''
758080
S1007040
€1,211.76
(excl. btw)
add to cart
6844
Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN100 - 4''
758100
S1007041
€2,187.90
(excl. btw)
add to cart
